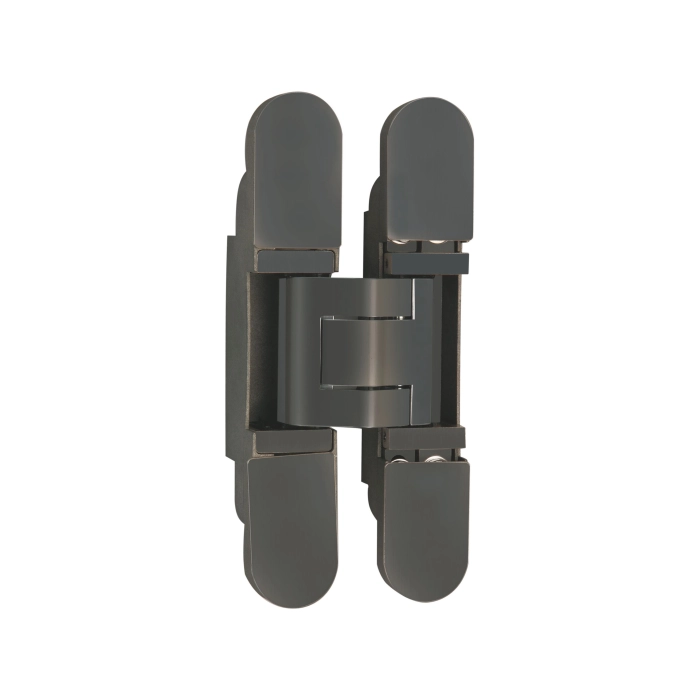

EuroArt 3D Adjustable Concealed Hinge Load Capacity 120kg
Price range: 146.86 through 164.32
Features
- Completely concealed for unrebated doors with timber, steel, and aluminium frames
- Cycle tested: 200,000
- Suitable for right-hand and left-hand applications
- Three-dimensionally adjustable
- Opening angle: 180 degrees
- Pre-cut intumescent hinge pads available
| Ref. No. | Size | Load Capacity |

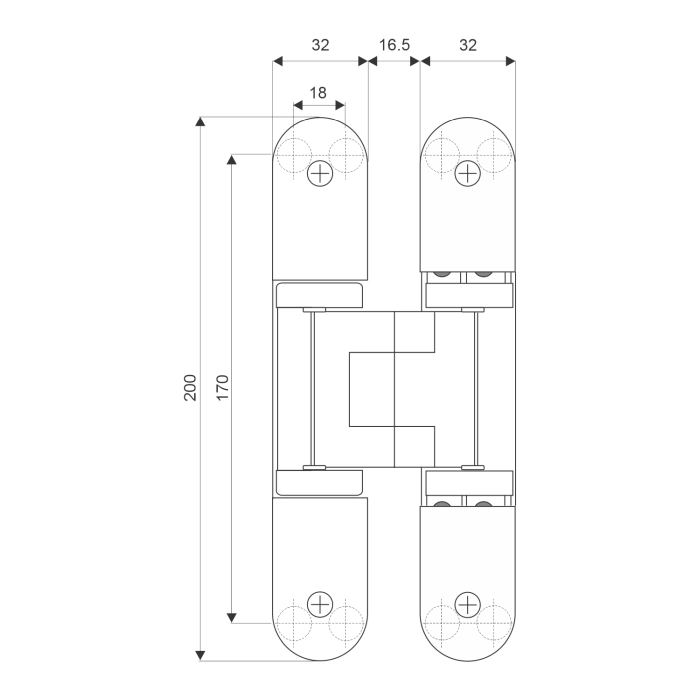

| 3D200 | 32 x 200mm | 120kg. |
| Minimum door thickness required: 40mm 2 Pcs. for door width upto 1000mm 3 Pcs. for door width upto 1150mm |
||
| Finish | Matt Antique Brass, Matt Black, Polished Brass, Satin Brass, Satin Champagne Gold, Satin Stainless Steel |
|---|---|
| Material | |
| Size | |
| Unit |
