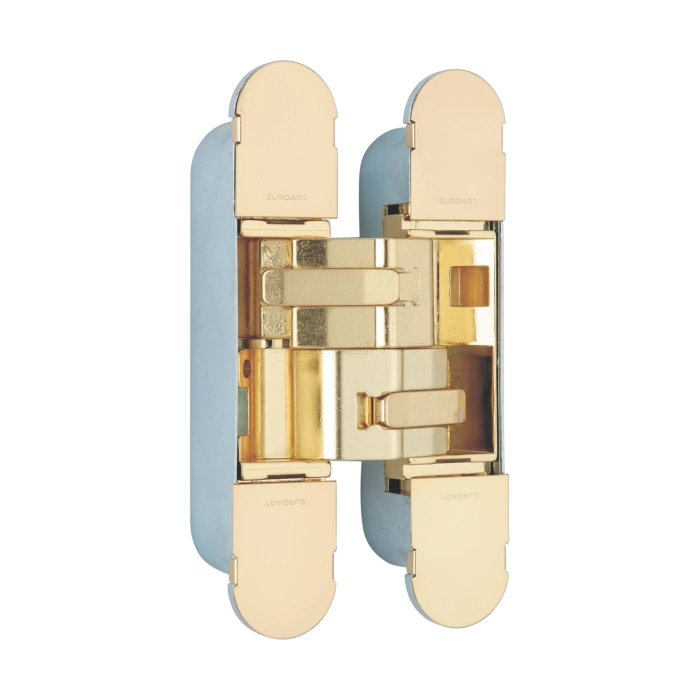

EuroArt 3D Concealed Hinge Total Height 160mm

Price range: 161.15 through 241.56

Key Features

Available in 10 different finishes
Compatible for door thickness minimum 38mm

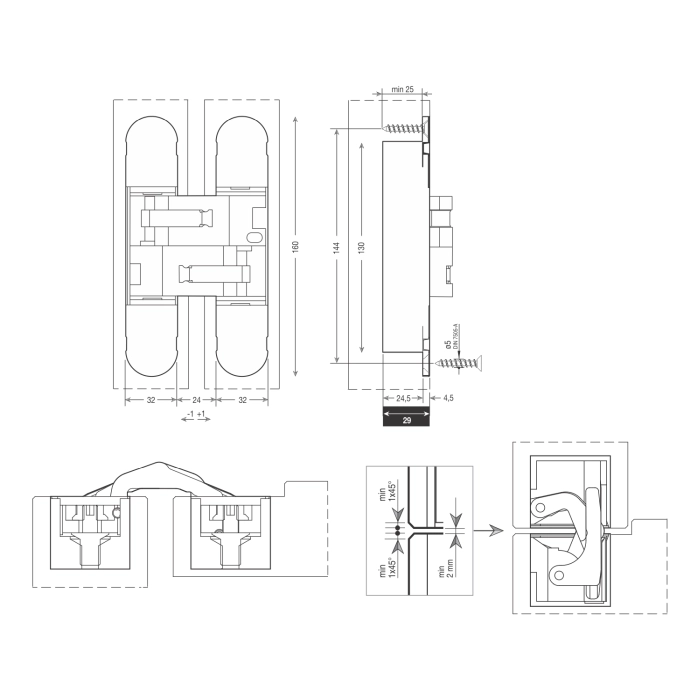

Hinge total height 160mm and depth 29mm
Area of application: residential, commercial entrance doors & marine use
3D adjusting system – horizontal, vertical, and depth adjustment
Easy installation with slot symmetry
Smart design with steel caps to resist rusting and oxidation
Restructured joints for smooth, effortless movement and long-lasting durability
Brand: EuroArt

Finish

Clear

SKU: ED360 Category: 3D Concealed Hinges Brand: EuroArt

Load capacity chart

	2 HINGES LOAD CAPACITY CHART
Door Height mm	2200	80	80	80	78	66	59	54
	2100	80	80	80	72	62	56	52
	2000	80	80	80	66	58	53	49
	1900	80	80	73	62	55	51	47
		700	800	900	1000	1100	1200	1300
	Door width mm

	3 HINGES LOAD CAPACITY CHART
Door Height mm	3000	120	120	120	120	120	120	120	4 HINGES SUGGESTED
	2900	120	120	120	120	120	120	120
	2800	120	120	120	120	120	120	112
	2700	120	120	120	120	120	120	105
	2600	120	120	120	120	120	114	98
	2500	120	120	120	120	120	105	92
	2400	120	120	120	120	115	98	87
	2300	120	120	120	120	106	92	83
	2200	120	120	120	117	98	86	78
	2100	120	120	120	107	91	82	75
	2000	120	120	120	98	85	77	71
		700	800	900	1000	1100	1200	1300
	Door width mm

Finish	Matt Antique Brass, Matt Black, Matt Satin Nickel, Polished Brass, Satin Champagne Gold, Satin Stainless Steel
Material	Stainless Steel
Unit	Each
