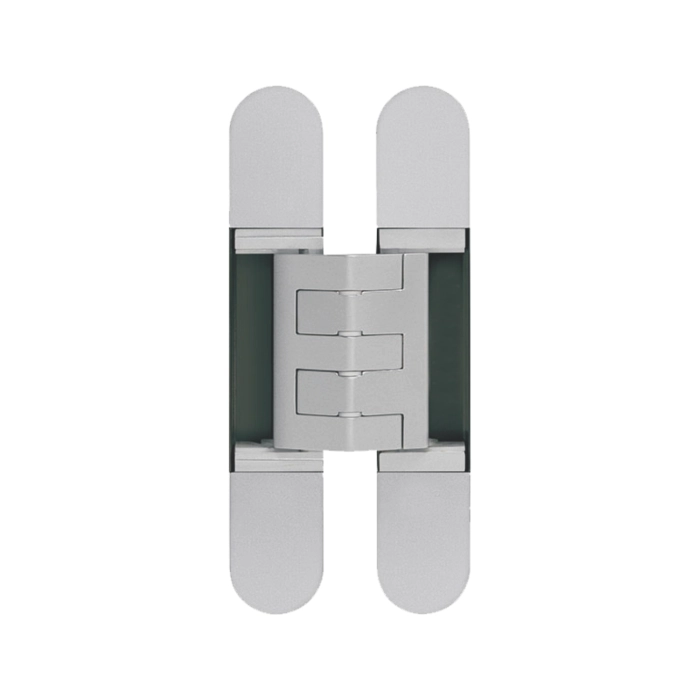

EuroArt 3D Concealed Hinges Load Capacity 250kg

Price range: 485.07 through 552.13

Features

Available in 4 different finishes
Compatible with doors having a minimum thickness of 38mm
Load bearing capacity: 250kg
3D adjusting system – horizontal, vertical, and depth adjustment
Symmetric and only 32mm deep
ED430W – available for cladded doors

Finish

Clear

SKU: ED430 Category: 3D Concealed Hinges Brand: EuroArt

Load Capacity Chart

2 HINGES LOAD CAPACITY CHART
2200	180	180	180	176	150	133	122
2100	180	180	180	162	140	126	116
2000	180	180	180	150	132	120	111
1900	180	180	164	140	125	114	107
	700	800	900	1000	1100	1200	1300
	Door width mm

3 HINGES LOAD CAPACITY CHART
Door Height mm	3000	215	215	215	215	215	215	215	4 HINGES SUGGESTED
	2900	215	215	215	215	215	215	215
	2800	215	215	215	215	215	215	201
	2700	215	215	215	215	215	215	188
	2600	215	215	215	215	215	204	176
	2500	215	215	215	215	215	189	165
	2400	215	215	215	215	207	176	156
	2300	215	215	215	215	190	165	148
	2200	215	215	215	210	176	155	141
	2100	215	215	215	192	164	146	134
	2000	215	215	215	176	153	138	128
		700	800	900	1000	1100	1200	1300
		Door width mm

Finish	Matt Antique Brass, Matt Black, Satin Brass, Satin Nickel
Material	Stainless Steel
Unit	Each
