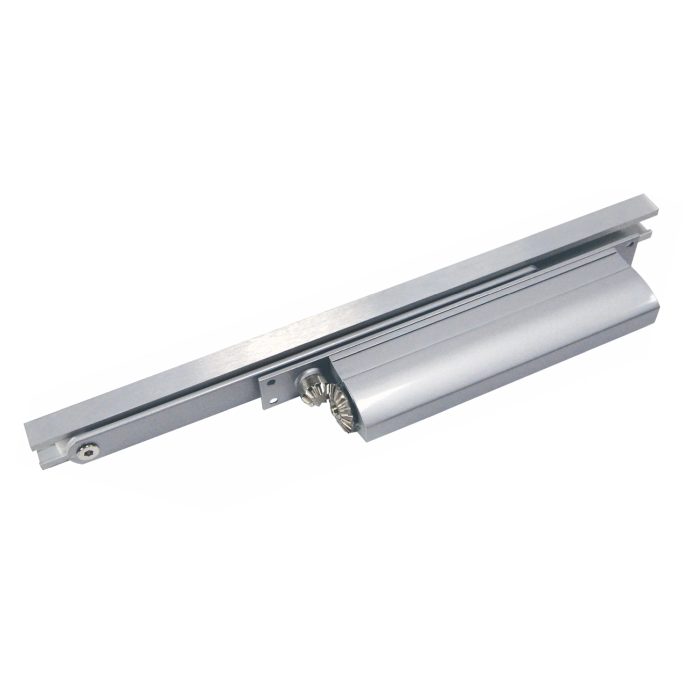

EuroArt Door Closer Concealed Cam Action

From 731.75

Key Features:

Enhanced aesthetics providing a clean, unhindered appearance to the door and interior
Totally invisible when the door is closed; guide rail only visible during opening moment
Optimum protection against vandalism due to concealed installation
Can be incorporated within the door pre-fabrication process, allowing complete factory installation
Fully controlled and reliable closing with adjustable latch action
Tested to Grade 8 with 500,000 cycles
Hold open unit available

Finish

Clear

Product specification

Power size (adjustable by spring)

EN2	Yes
EN3	Yes
EN4	Yes
Mechanism	Cam action
Adjustable closing speed	Yes
Adjustable latch action	Yes
Maximum door width (mm)	1100
Maximum door weight (kg)	100
Minimum door thickness required (mm)	40
Opening angle	120°
LH and RH doors – universal application	Yes
Note: push or pull side of the door subject to rebate distances.
