EuroArt Floor Spring with Hold Open Without Cover Plate

Floor Spring with Hold Open Function

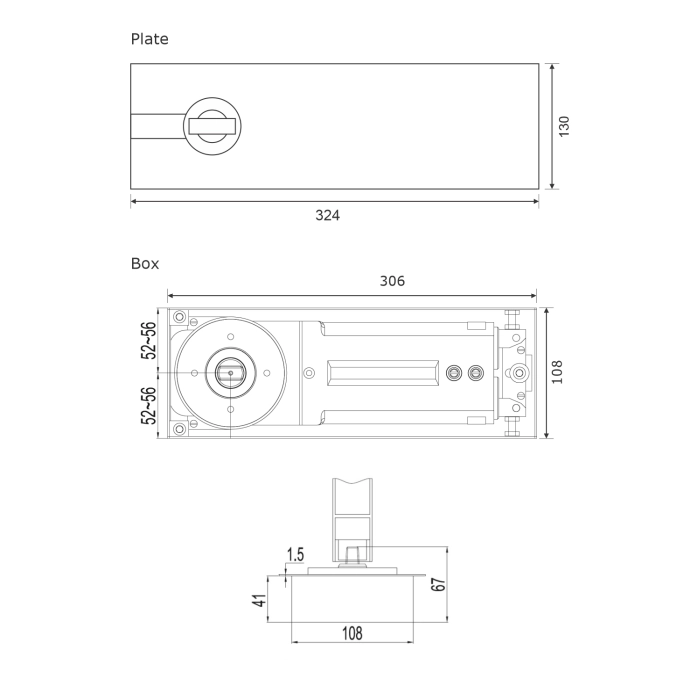

The floor spring with hold open, supplied without a cover plate, is finished in satin stainless steel and sized at 130mm x 324mm. Rated for doors up to 120kg, the unit supports both single action and double action door types, making it suited to a range of commercial and residential door installations where a concealed floor-mounted closing mechanism is required.

Construction and Specification

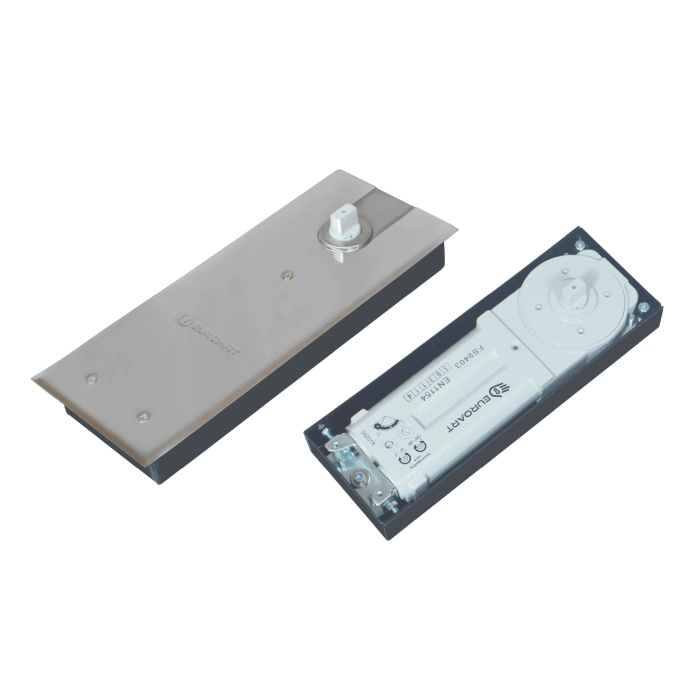

Finished in satin stainless steel, the floor spring is supplied as a set sized at 130mm x 324mm. It is rated to accommodate doors weighing up to 120kg, and the hold open function allows the door to remain open at a set position rather than closing automatically. The unit supports both single action and double action door configurations, without a cover plate included as standard.

Specification and Application

The floor spring with hold open is typically specified by architects and door hardware schedulers for commercial and residential doors where a concealed, floor-mounted closing mechanism is preferred over a surface-mounted closer. The 120kg door weight rating suits heavier timber, metal, or glass door leaves, and the single and double action compatibility allows the unit to be specified across a range of door configurations. Supplied as a set in satin stainless steel, the floor spring pairs with matching pivot hinges and hardware from the wider EuroArt range when compiling a door hardware schedule.
