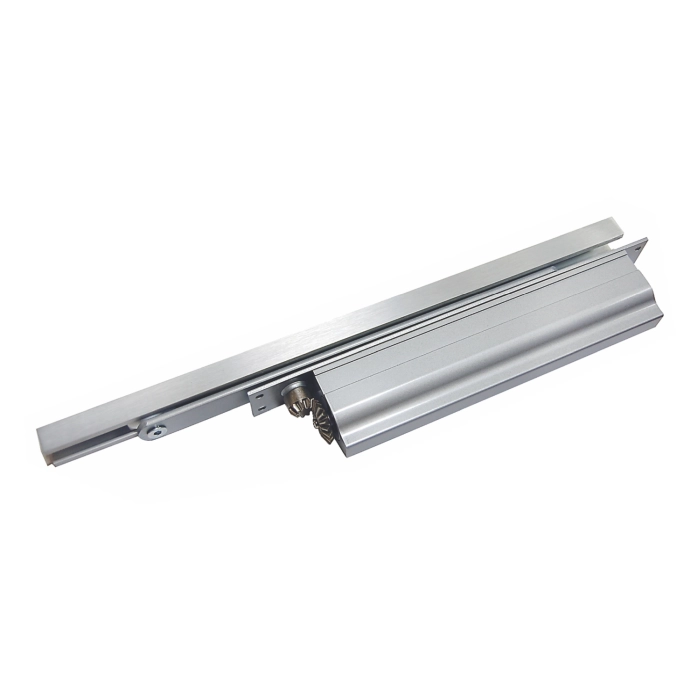

EuroArt Concealed Cam Action Door Closer EN 2-5
Key Features:
- Enhanced aesthetics – providing the ability to retain a clean, unhindered appearance to the door and interior
- Totally invisible when the door is closed; guide rail only visible during opening moment
- Optimum protection against vandalism because of concealed installation
- Can be incorporated within the door pre-fabrication process, allowing complete installation in the factory
- Fully controlled, reliable closing with adjustable latch action
- Tested to Grade 8: 500,000 cycles
- Hold open unit available
Product specification
Power size (adjustable by spring)
| EN2 | Yes |
| EN3 | Yes |
| EN4 | Yes |
| EN5 | Yes |
| Mechanism | Cam action |
| Adjustable closing speed | Yes |
| Adjustable latch action | Yes |
| Maximum door width (mm) | 1250 |
| Maximum door weight (kg) | 130 |
| Minimum door thickness required (mm) | 50 |
| Opening angle | 120° |
| LH and RH doors – universal application | Yes |
| Note: push or pull side of the door subject to rebate distances. | |
| Finish | |
|---|---|
| Unit |
