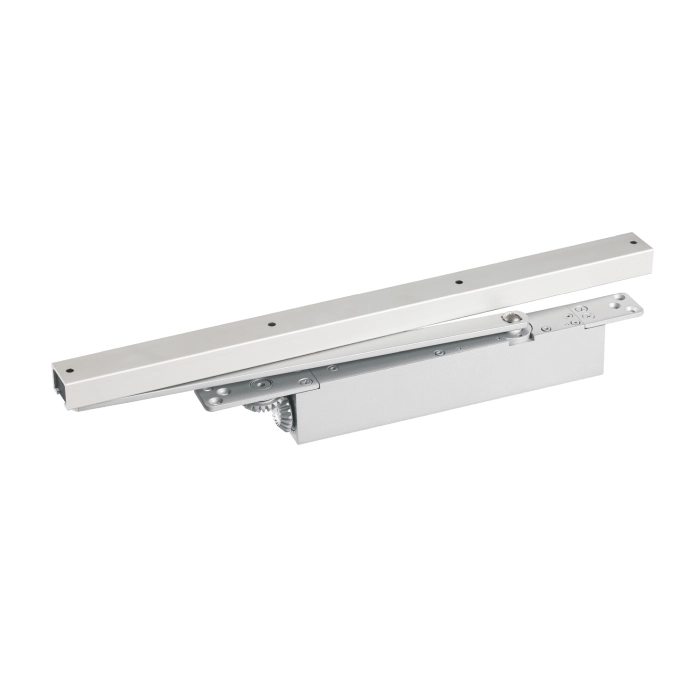

EuroArt Concealed Cam Action Hydraulic Door Closer

UAE Dirham 396.12

Key Features:

Enhanced aesthetics providing a clean, unhindered appearance to the door and interior
Totally invisible when the door is closed; guide rail only visible during opening
Optimum protection against vandalism due to concealed installation
Can be incorporated within the door pre-fabrication process for complete factory installation
Fully controlled and reliable closing with adjustable latch action
Tested to Grade 8 with 500,000 cycles
Hold open unit available

Finish

Clear

SKU: DC3024 Category: Door Closer Brand: EuroArt

Product specification

Power size (adjustable by spring)

EN2	Yes
EN3	Yes
EN4	Yes
Mechanism	Cam action
Adjustable closing speed	Yes
Adjustable latch action	Yes
Maximum door width (mm)	1100
Maximum door weight (kg)	100
Minimum door thickness required (mm)	44
Opening angle	120°
LH and RH doors – universal application	Yes

Note: Push or pull side of the door subject to rebate distances.

Finish	Fused Nickel Bronze, Matt Antique Brass, Matt Black, Satin Brass, Silver
Unit	Each
