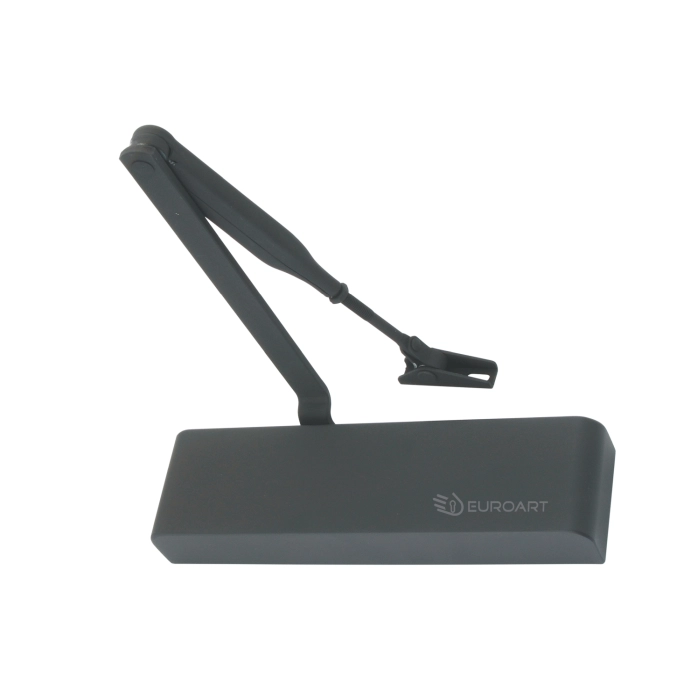

EuroArt Overhead Door Closer Slimline Design EN 2-4

EuroArt overhead door closer slimline design for smooth controlled closing of residential and commercial doors

EuroArt overhead door closer slimline design for smooth controlled closing of residential and commercial doors

EuroArt Overhead Door Closer Slimline Design EN 2-4

Price range: 184.86 through 481.67

Key Features:

Slimline compact design
Quick and easy to install
Non-handed unit
Outstanding value for money
Constant closing action virtually unaffected by temperature fluctuations
Reliable closing with adjustable latching action
Hold open arm available
Parallel arm bracket available
Suitable for 120min fire-rated timber and 240min metal doors
Tested to Grade 8: 500,000 cycles

Finish

Clear

SKU: DC5024 Category: Door Closer Brand: EuroArt

Product specification

Power size (adjustable by spring)

EN2 (up to 850mm/45kg)	Yes
EN3 (up to 950mm/60kg)	Yes
EN4 (up to 1100mm/80kg)	Yes
Mechanism	Rack and pinion
Adjustable closing speed	Yes
Adjustable latch action	Yes
Adjustable back check (CE in Fig 66)	Yes
Maximum door width (mm)	1100
Maximum door weight (kg)	80
Angle	180°
Tested to BS EN 1154: 1997	Yes
CE marked	Yes
DDA (min door width 936mm)	Fig 1
DDA (min door width 753mm)	Fig 66
LH and RH doors – universal application	Yes
Fire rated (BS EN 1634-1: 2000)	Yes

Finish	Matt Antique Brass, Matt Black, Polished Brass PVD, Satin Stainless Steel, Silver
Unit	Each
